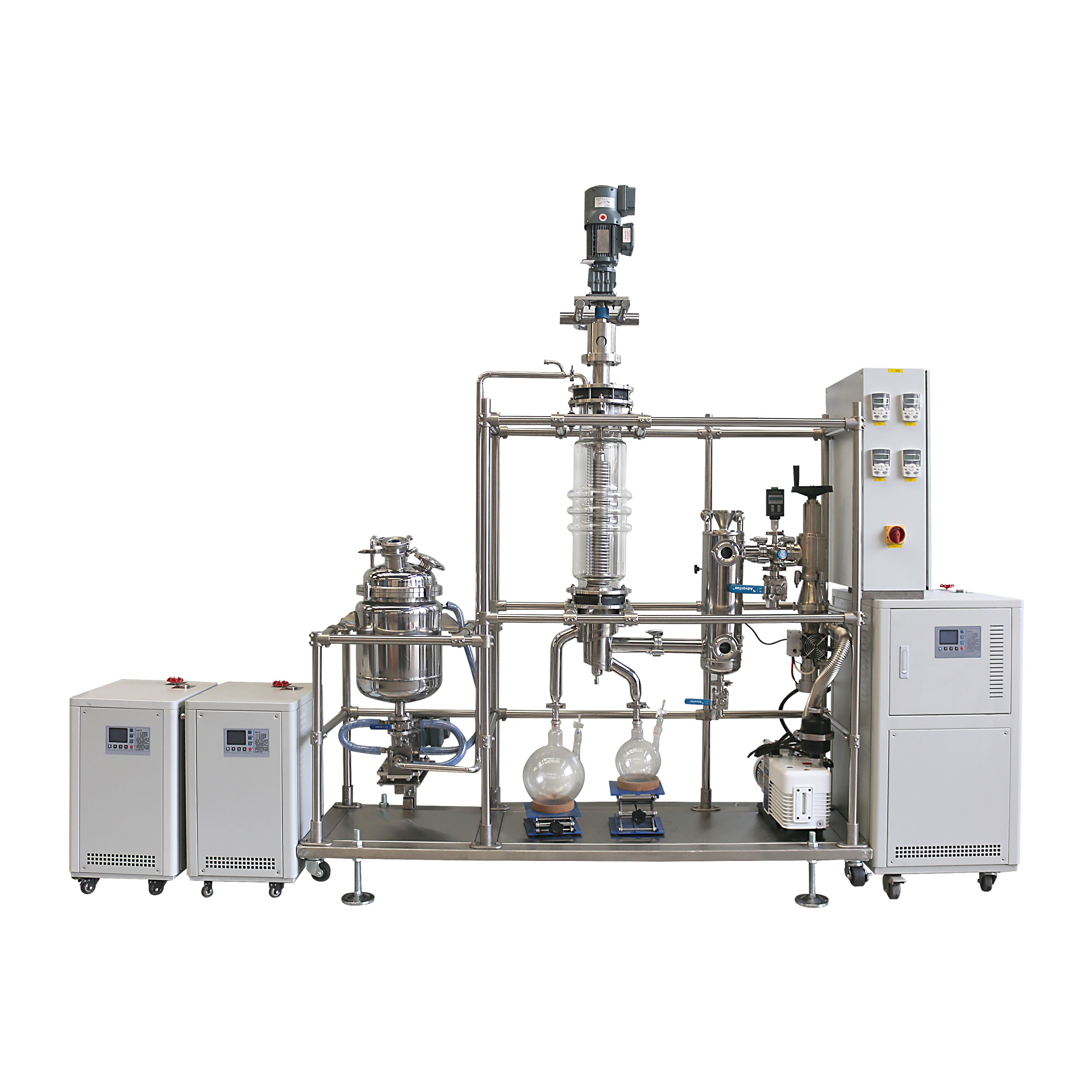

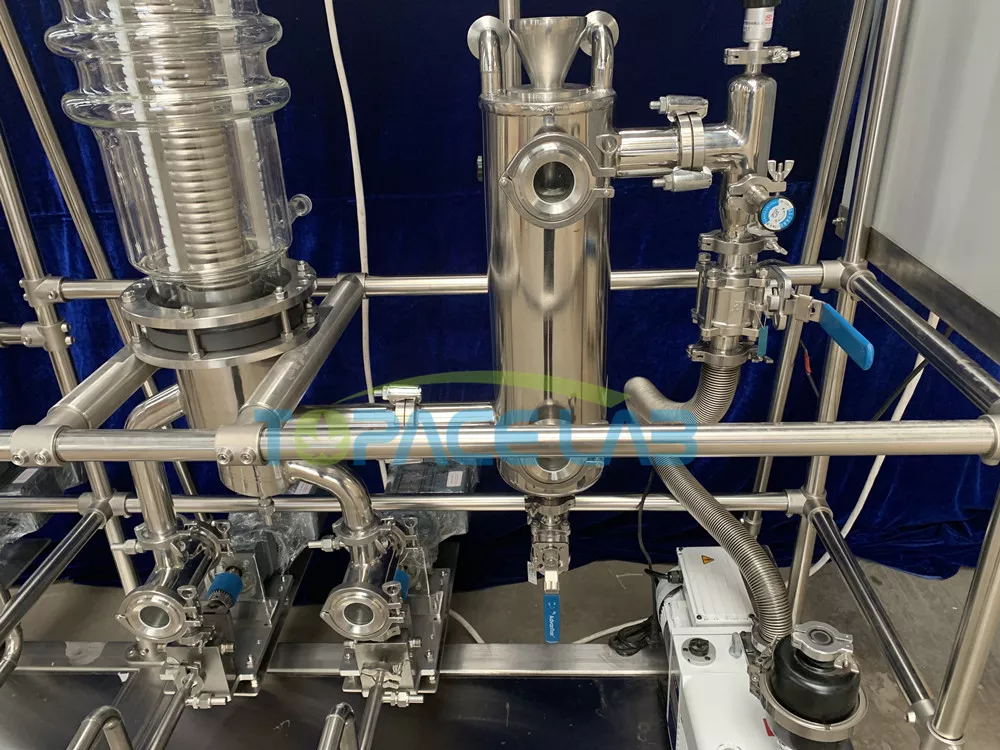

Topacelab 2-6L/h vacuum molecular distillation apparatus  molecular distillation kit single stage molecular distillation

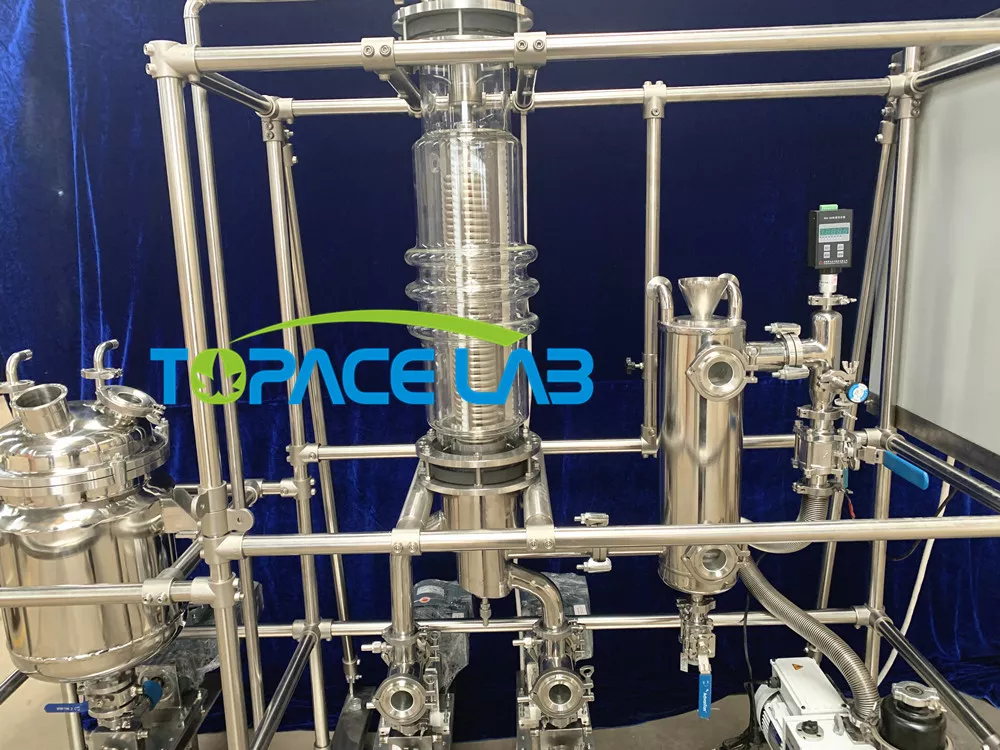

Hybrid wiped film evaprator is a new style molecular distillation equipment that made by glass and stainless steel. It combines the advantages of glass wiped film evaporator and stainless steel molecular distillation, such as process visibility, durable in use, high evaporator rate and so forth.

Principle of molecular distillation process

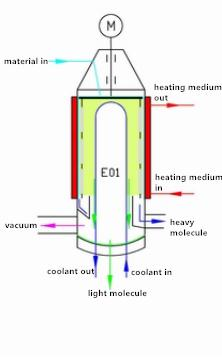

The separation process is as shown in the figure. The material is added from the top of the evaporator and distributed continuously and uniformly on the heating surface through the material-liquid distributor. The film scraper scrapes the product into a very thin, turbulent liquid film. In this process, the light molecules escaping from the heating surface reach the condenser and condense into liquid, and flow down the condenser tube, and discharge through the discharge tube at the bottom of the evaporator; Residues, or heavy molecules, are collected in a circular channel under the heating zone and then discharged through a side discharge tube.

Complete sets of equipment

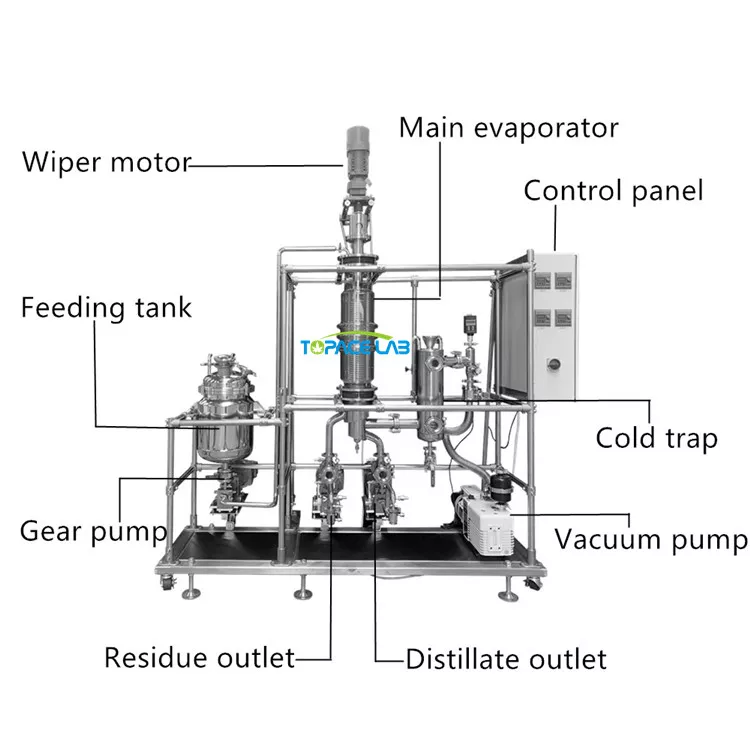

A complete molecular distillation unit includes:

 * Jacketed evaporator

 * Heating system

 * Material pretreatment unit

 * Cooling unit

 * Vacuum unit

 * Material collection unit, etc

* Collect terpences. * continuous feeding. * continuous collection. * Better vacuum.

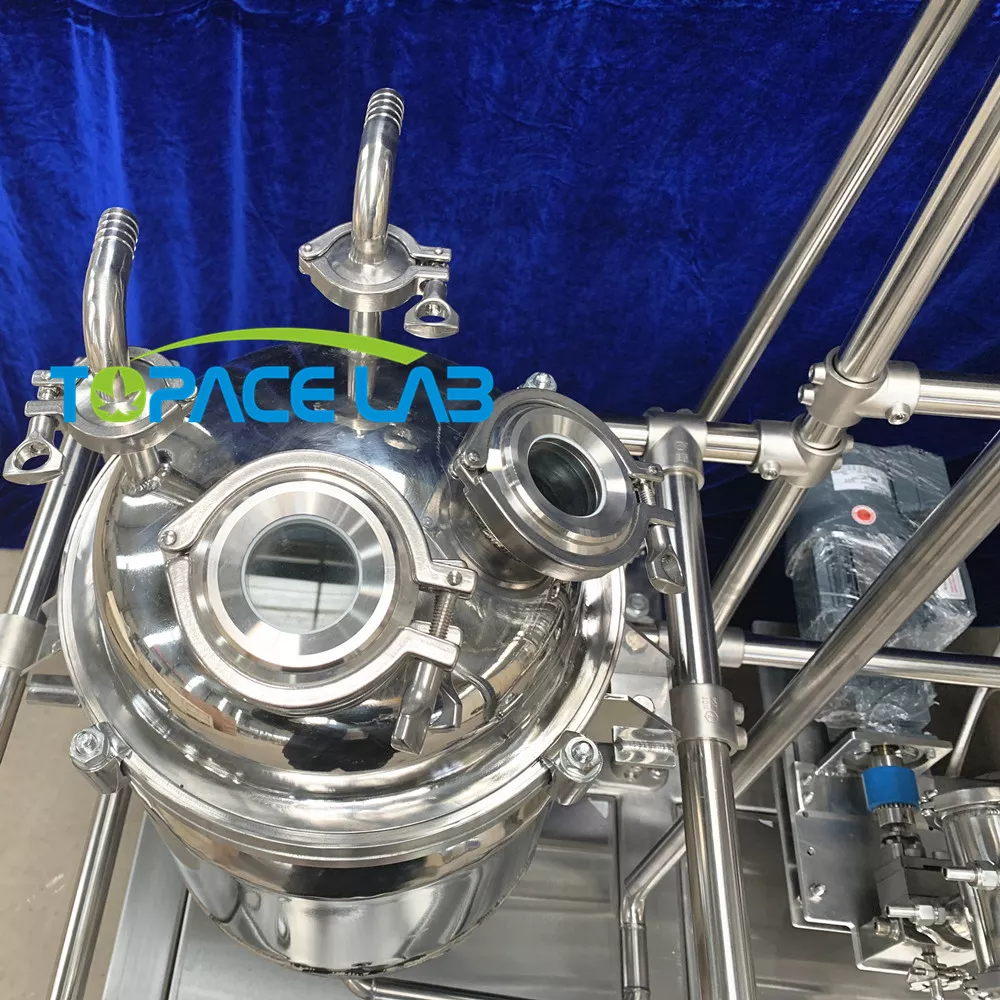

1. Jacketed pipeline has a good heat preservation.

When the melting point of material is higher than room temperature,will not congeal in pipeline.

2. Continous feeding with high precision gear pump.

The material flow rate does not change with pressure difference,as long as the set speed is the same, the delivery amounts is same.

3. Continous to discharge with two high precision gear pumps.

4. Connection with heater and chiller, convenient and ordered.

5. Large condenser area, high evaporation rate.

1. Short residense time.

2. High evaporation rate.

3. Low processing temperature.

4. Low vacuum.

5. Contionous feeding and discharging.

6. Plug and play.

7. High-thermal conductivity,high efficiency.

8. Durable in use.

Flow chart

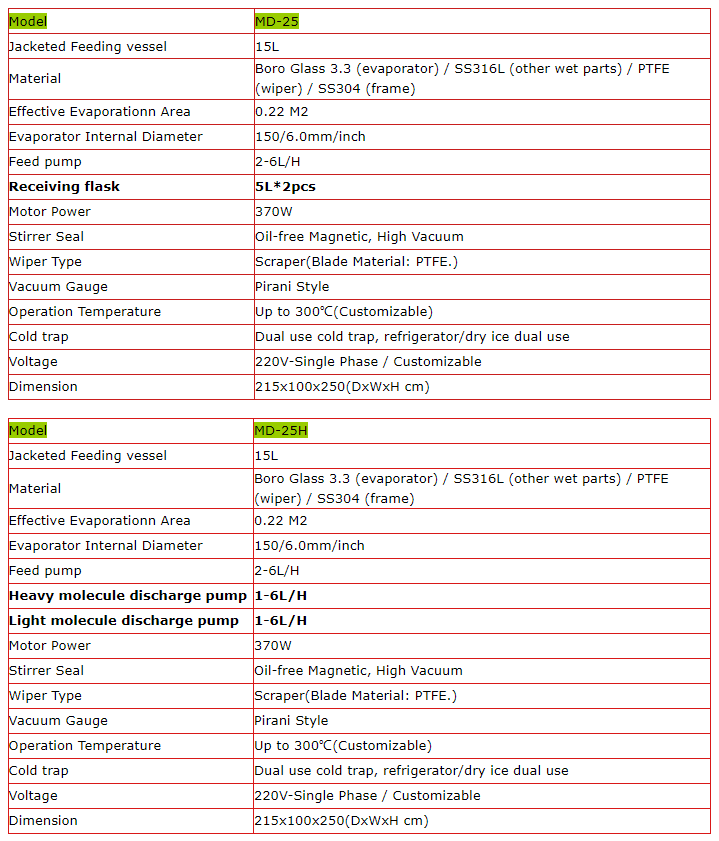

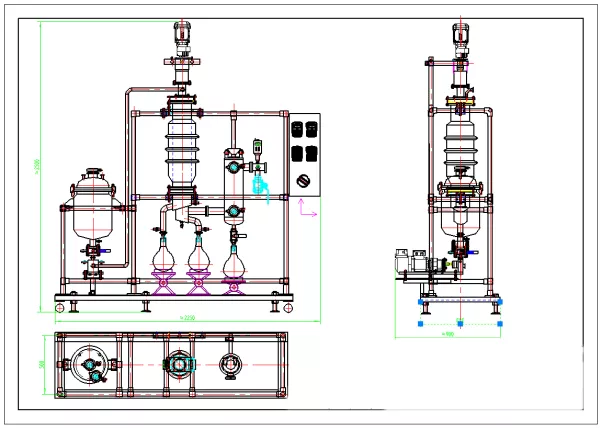

MD-25

Continuous feeding: Gear pumps with jacketed head

Continuous discharging: Glass flasks with PTFE valve

Jacketed heating (Fully jacketed pipeline)

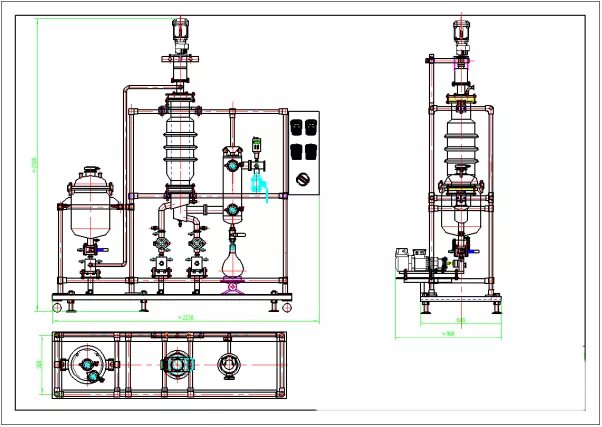

MD-25H

Continuous feeding: Gear pumps with jacketed head

Continuous discharging: Gear pumps with jacketed head

Jacketed heating (Fully jacketed pipeline)

Turnkey system

Vacuum pump (840L/min)

Circulating heater (Up to 300°C) for jacketed evaporator

Circulating heater (Up to 200°C) for feeding vessel and Pipeline

Circulating heater chiller(-20°C to 180°C) for internal condenser

Circulating chiller (Down to -80°C) for cooling cold trap condenser
